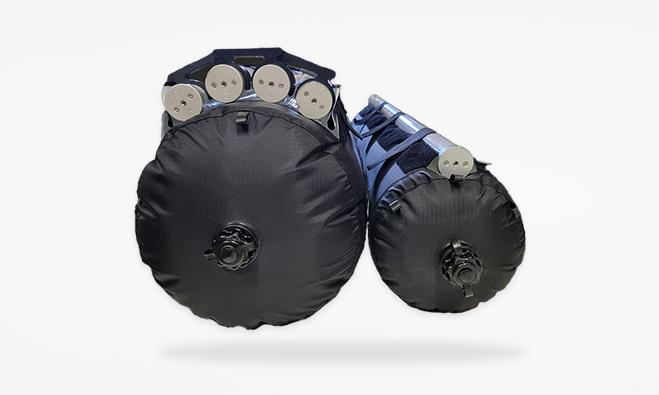

Airtube Switch 200 XL
If you ever wanted to use up to 4 LED tubes next to each other, you should try our new Airtube XL with a new, bigger diameter of ~30cm / ~11.4". More space for more LED light fixtures. Tubes, bars, mats - when it fits, it fits.
We also offer our new Spacer (sold separately, not included), which helps maintaining the right space between multiple LED tubes and prevents any bending, due to the Airtube air pressure. The clip connects 2 LED tubes, like Astera Titan, with a simple clip-on mechanism.
At the beginning we offer 3D printed Spacers. Additionally we also provide the STL file free of charge to all customers who want to 3D print the spacers themselves. Later we will offer properly produced spacers.
Our Airtube is "Made in Germany".
This AIRTUBE is particularly suitable for use with an Astera Hyperion, two Astera Titans, or Pixelbar AX1, as well as all LED tubes with an aperture length of ~2m / 6.56ft.
Length of AIRTUBE: ~2.1m / 6.88ft
Length of aperture: ~2m / 6.56ft
Diameter of AIRTUBE: ~29cm / ~11.4"
Max. ambient temp: +45°C/113°F
Max. surface temp: +85°C/185°F
SKU: ATS20029
Every LED tube light with an aperture of 200cm/6.56ft, e.g., Astera Hyperion
FAQs
We are using special motion picture technical fabrics from TRP Worldwide (The Rag Place). Especially Black/White Ultrabounce® and Magic Cloth®.
The AIRTUBE is build for maximum ~12 PSI/0,83 bar. The seams of the textile will start to tear apart, when exceeding the air pressure. Be careful when using an air compressor and always keep an eye on the air pressure when inflating. The transparent body can withstand a temperature of up to 212°F/100°C. Discoloration, deformation or even holes can then appear.
During our quality control we sort out bad materials. But maybe we simply have overlooked something. Just contact us and send us a picture. Furthermore it may happen that due to the production process there might be a crease or seam we cannot avoid.
We highly recommend to store the AIRTUBE gently rolled up on the cardboard roll and inside the protective sleeve to reduce kinks, wrinkles and containments.
Yes. Just contact us for more details.
The AIRTUBE is primarily intended for LED tubes, LED bars and very narrow LED panels from the film, show and TV industry. However, all types of light tubes, bars, panels and strips can be used, which can be securely fixed on the outside. You should pay attention to the fact that broken glass can damage the AIRTUBE when using Kinoflo lamps or normal fluorescent tubes and always be aware of overheating. In any case, you must not exceed the material limits of the AIRTUBE and you should always act with common sense.
Since the air valve of our AIRTUBE has a common inlet size ~0.68"/1,75cm you can use almost every air pump/blower already on the market. At the moment we do not offer a special air pump/blower.
Depending on the product, we offer separate parts for exchange.
When operating in a warm environment and using the spill light cover, overheating problems can occur. Just make sure there is enough space for some air circulation.
Use warm water and gentle soap for the white translucent Magic Cloth® and for the black Ultrabounce® please use a multi-purpose cleaner (e.g. Formula 409 Cleaner) or warm water with gentle soap. Also a microfaber cloth is always very useful.
